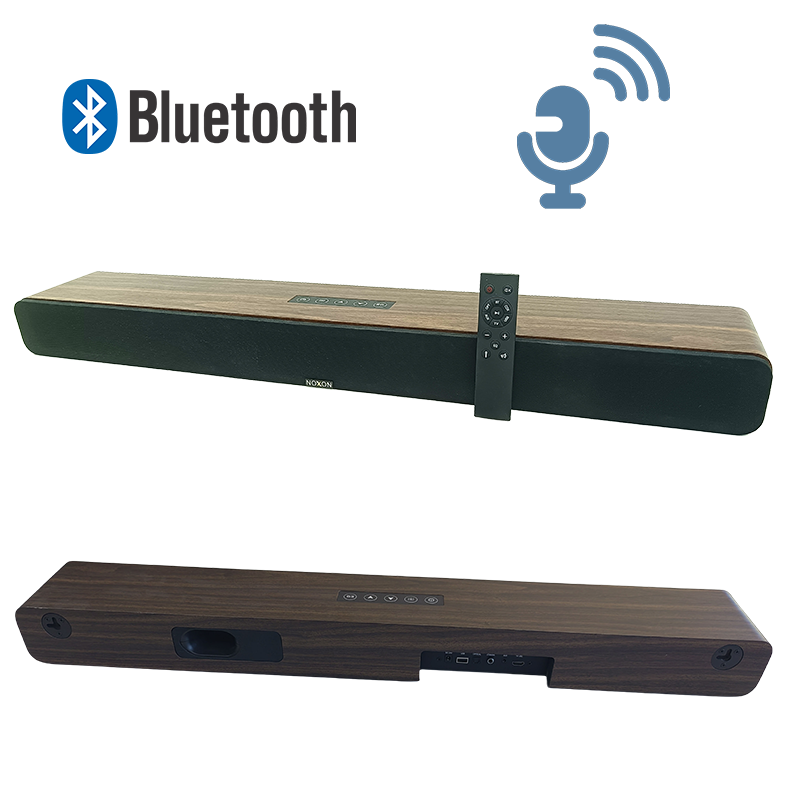

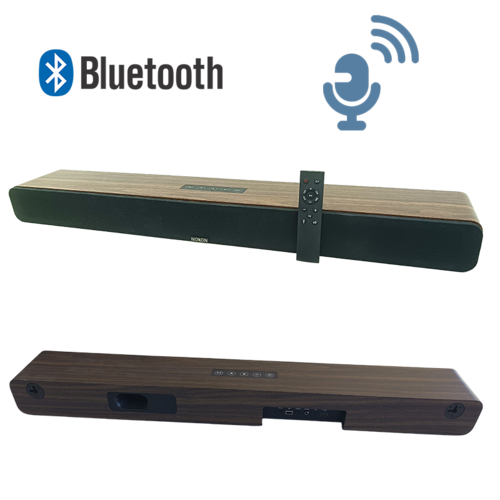

A 2.1 system with optional Karaoke function;
All-in-one equipped with DSP to enhance your listening, KTV singing or Speech experience
with TV (Arc), Bluetooth, USB, Coaxial, Optical and Aux (3.5mm) inputs; bass EQ +/- by remote control.
| Item | Parameters |
| Power output (RMS) | 2.1 system, 2Ch*13W/ch + 40W/Sub, 4Ω |
| Power consumption in working mode | 72W |
| Power consumption in standby mode | <1.3W |
| Input sensitivity | 500mV |
| Frequency Response: | Sat channel 200Hz - 20k Hz (-3dB) |
| Subwoofer 20Hz - 200 Hz (-3dB) |
| THD (Rated output: –3 dB),6Ω, 1 kHz) | 0.05% |
| S/N (A+ weight) | 85dB |
| Remote control | Yes |
| Power adapter | Yes, 24V/3A |
| DSP solution | AD83586B |
| Bluetooth solution | AB5301A, V5.3 |
| Subwoofer unit | 3", Black steel basket, paper cone |
| Full-range driver | 100x60mm, Black steel basket, paper cone |
| Frequency Response | 55~20KHz |
| Sensitivity | 86dB /M/W |
| Product size | W920xD134xH80 mm |
| Packing Dimensions | W1005xD294xH182 mm |
| Net weight | 4.50 kgs |
| Gross weight | 5.70 kgs |
| Cabinet material & material | Per customization |
