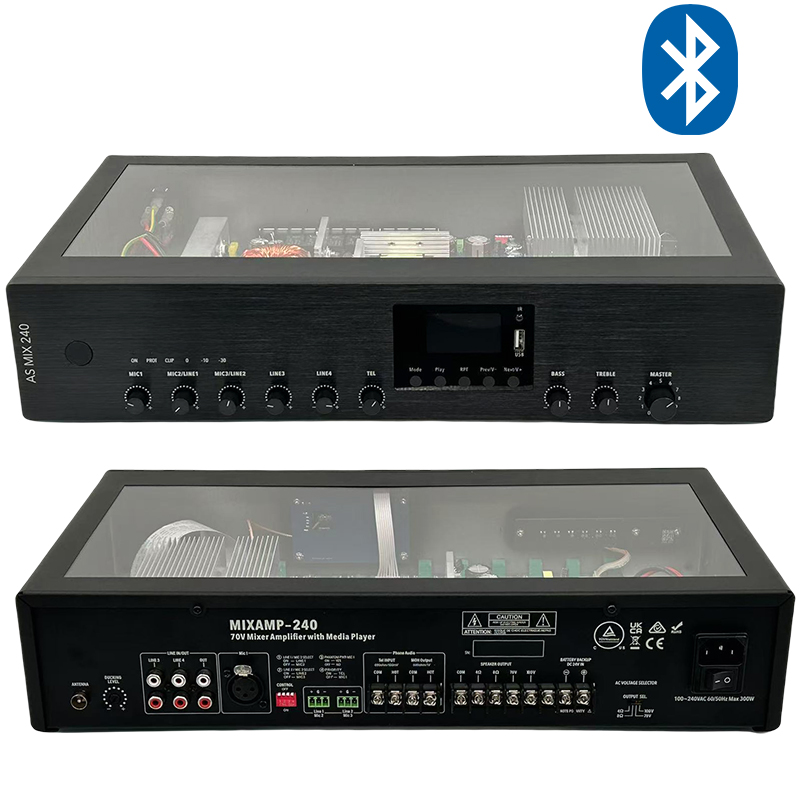

Class-D Mixing Amplifier Amplifier with Media Player
Advanced LCD display, USB playback
Switchable XLR input with 24V phantom power, especially for paging and condenser microphones.
Especially designed for announcements, intercommunications, background music, broadcasting, etc.
| ltem | DMA-240 | DMA-60 |
| Output power (RMS) | 240W: 4Ω/8Ω/100V/70V | 60W: 4Ω/8Ω/100V/70V |
| Power consumption in working mode | 410W max | 100W max |
| Power consumption in standby mode | ≤1W | ≤1W |
| S/N (A+ weight) | 85dB | 85dB |
| Frequency Response | 55Hz -20K Hz (-3dB) | 55Hz -20K Hz (-3dB) |
| Input impedance | 10KΩ | 10KΩ |
| THD (Rated output: –3 dB) | 0.1 %, 4Ω, 1K Hz | 0.1 %, 4Ω, 1K Hz |
| -Input sensitivity: MIC 1~3 | 5mV | 5mV |
| Input sensitivity: LINE 1 & 2 | 100mV | 100mV |
| Input sensitivity: LINE 3 & 4 | 250mV | 250mV |
| -Input sensitivity: | 150mV | 150mV |
| Bluetooth solution | Bluetrum BT8961B2 V5.3 | Bluetrum BT8961B2 V5.3 |
| AUX (R&L) | Yes | N/A |
| Tuner | Yes | Yes |
| Tone control | BASS,TREBLE (+/-12dB) | N/A |
| Pre out | Yes | N/A |
| Product size | W435xD248xH88 mm | W435xD248xH88 mm |
| Packing Dimensions | W525xD370xH191mm | W525xD370xH191mm |
| Net weight | 5.10 kgs | 4.80 kgs |
| Gross weight | 7.30 kgs | 7.00 kgs |
| Cabinet color & material | Customization, or Galvanized iron & baked finish |
