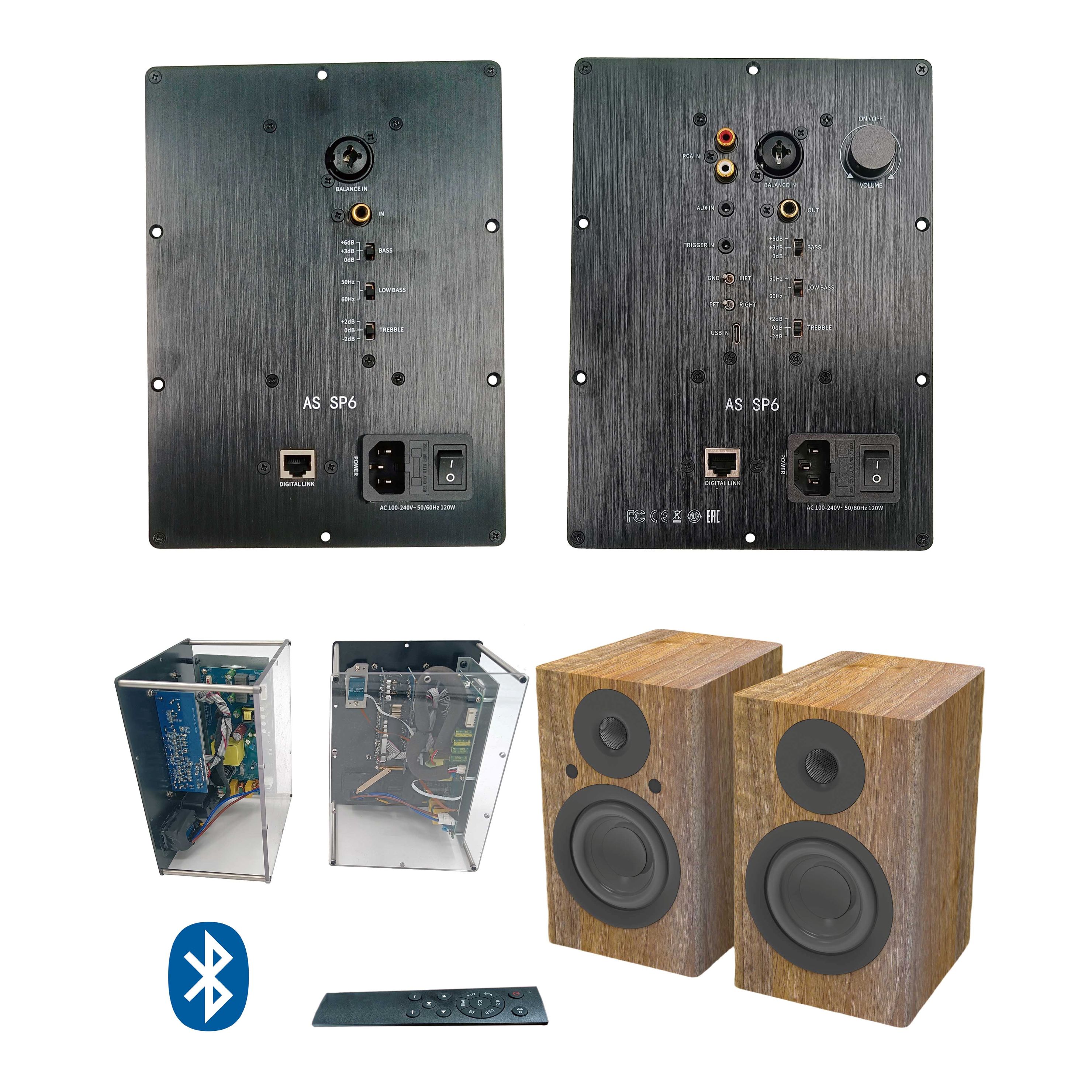

Dual Powered Monitor speakers,
Supported by QCC5124, Bluetooth V5.0
Suitable for both Home audio and Profession usages;
Single output boosts each 2-way speaker independently.
| Item | Parameters |
| System mode | 2-way 4-speaker inverted phase system |
| CLASS-D chip | TPA3116D2/TPA3126D2 |
| MOSFET | HCD65R320/WMO30P10TS |
| MCU | STC8H1K24 |
| BT chip | QCC5124 (BT5.0) |
| Tweeter | 1"dome tweeter, 25W@ 8Ω |
| Woofer | 6.5" mid-range & woofer, 80W@6Ω |
| Frequency Response@1kHZ 0dB | 35Hz-20KHz |
| THD@Rated Power | <1% 43W(6R) /<5% 52W(6R) limiter |
| Signal To Noise (+A) | >91dB @Max Power |
| Tweeter/woofer Noise Level | <450uV/410uV |
| Crossover point | 3.1KHZ |
| Standby power consumption | <0.5W |
| Power supply | 100-240VAC 60/50Hz |
| Product size | W230xH365xD276 mm |
| Net weight | 6.80 kgs |
