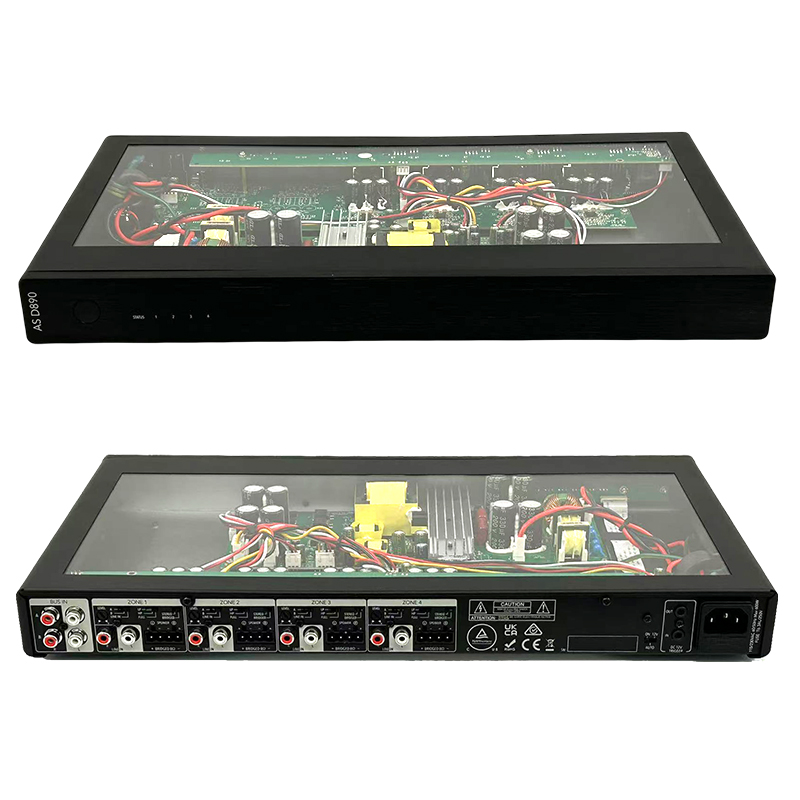

Class-D, Digital amplifiers with Multi-channel.
8-channel (4 independent zones)
12-channel (6 independent zones)
16-channel (8 independent zones)
Universal in/out 12v triggers as well as zone-specific in/out triggers;
Being able to bridge channels allows a doubled power output.
| ltem | DPA-908 | DPA-9012 | DPA-7516 |
| Output power (RMS) | 8chx90W@4Ω | 12chx90W@4Ω | 16chx75W@4Ω |
| Output power (RMS) | 8chx45W@8Ω | 12chx45W@8Ω | 16chx37W@8Ω |
| One Zone Driven-8Ω Bridged (RMS) | 4chx180W@8Ω | 6chx180W@8Ω | 8chx150W@8Ω |
| Power consumption in working mode | 600W max | 800W max | 1000W max |
| S/N (A+ weight) | 90dB | 90dB | 90dB |
| Frequency Response | 20Hz-20k Hz(-3dB) | 20Hz-20k Hz(-3dB) | 20Hz-20k Hz(-3dB) |
| Impedance | 10KΩ | 10KΩ | 10KΩ |
| Input sensitivity | 670mV | 670mV | 670mV |
| THD (Rated output. -3 dB) | 0.01 %, 4Ω,1 kHz | 0.01 %, 4Ω,1 kHz | 0.01 %, 4Ω,1 kHz |
| Standby Power consumption | ≤0.5W | ≤0.5W | ≤0.5W |
| Product size(mm) | W435xD248xH44 | W435xD248xH44 | W435xD248xH88 |
| Packing Dimensions (mm) | W525xD37xH148 | W525xD370xH148 | W525xD370xH191 |
| Net weight (kg) | 3.85 | 4.10 | 5.80 |
| Gross weight (kg) | 5.35 | 5.60 | 8.00 |
| Cabinet color and material | Customization,or galvanized iron & baked finish |
