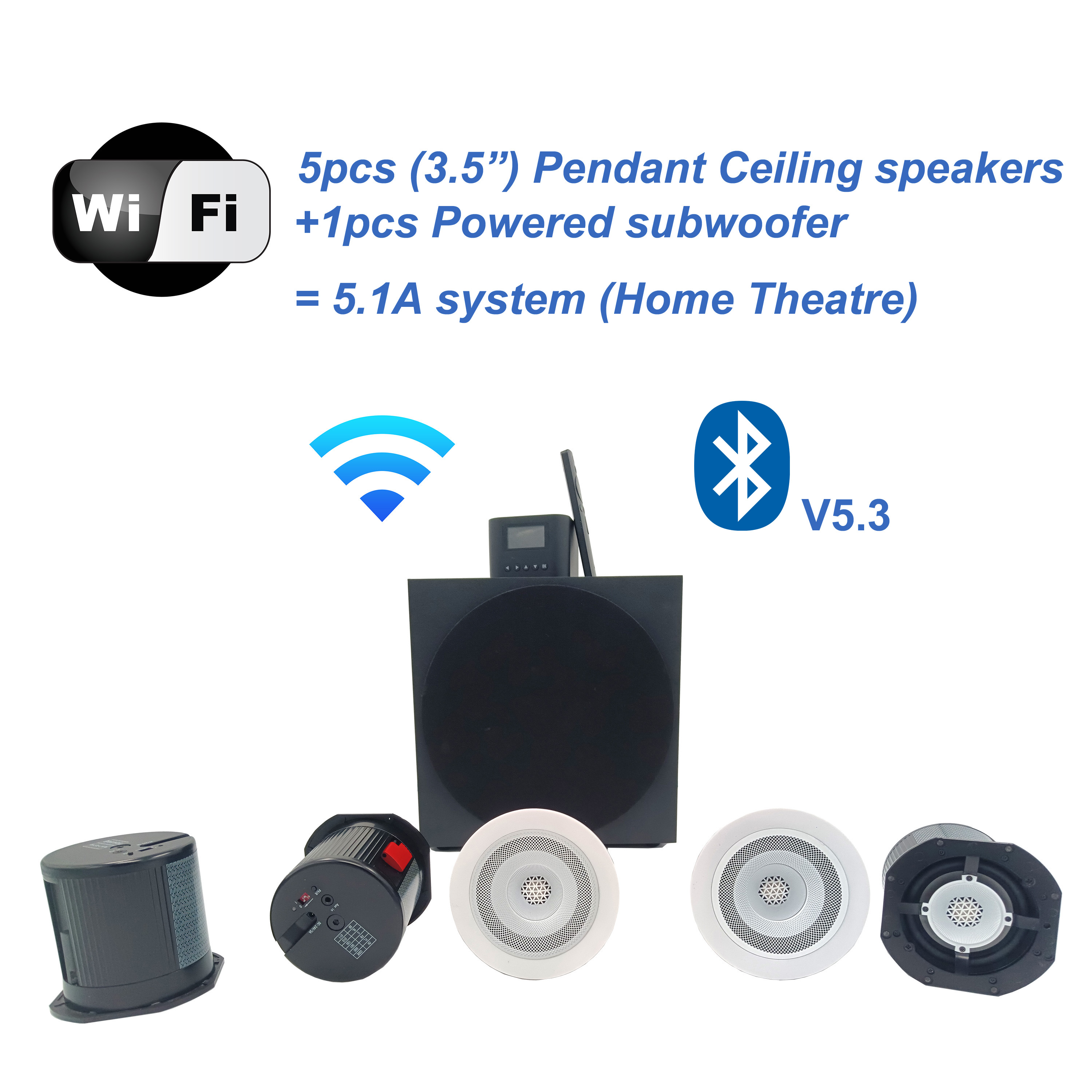

Powered 5.1A system, 5pcs pendant Ceiling speakers + 1 powered subwoofer
Decoding D2 solution, WiFi player controlling
Supported by SMSC DWHP83 Module (bases on Microchip DARR-83) Wireless Audio Processor.

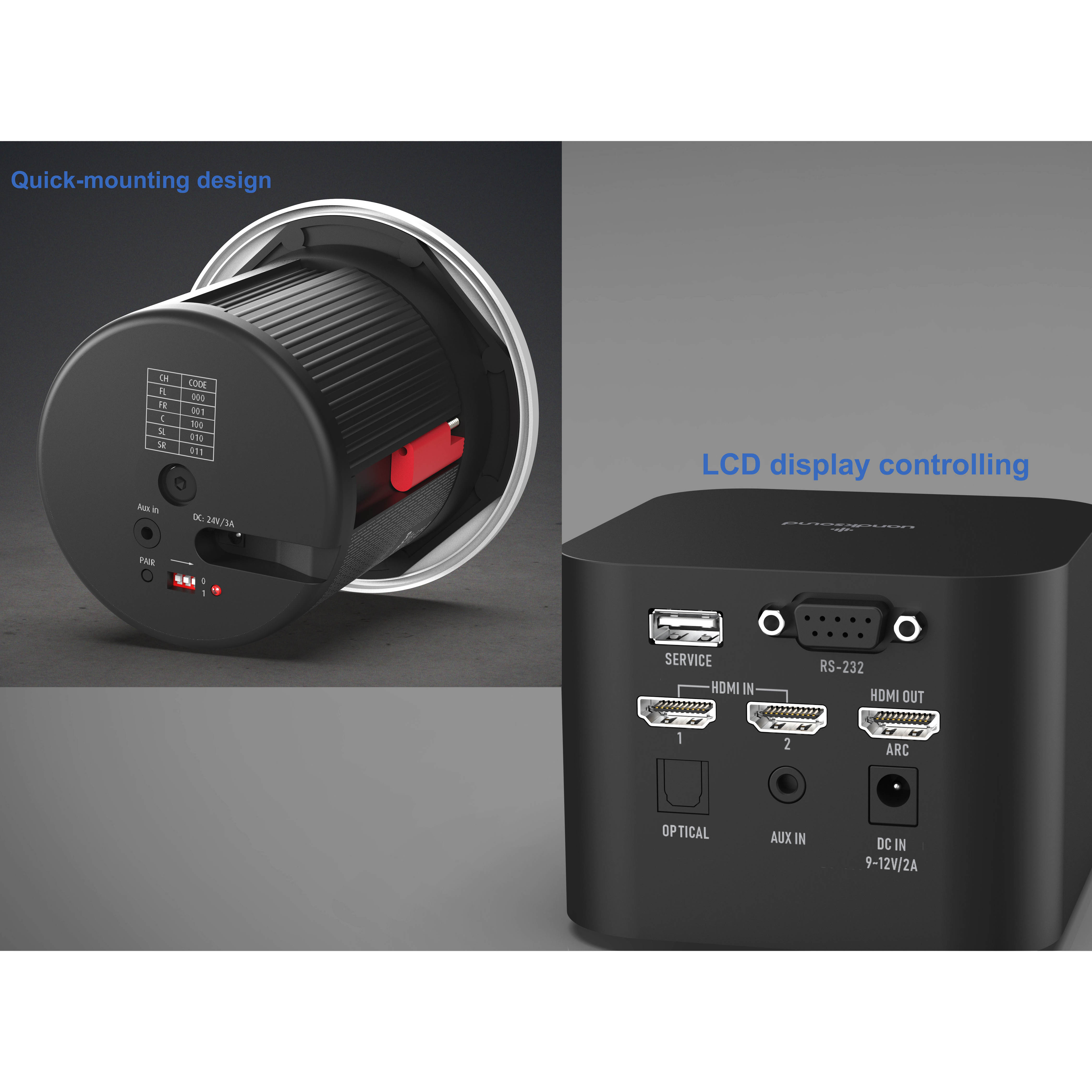

| Item | Parameters |
| Remote controller | Yes |
| Controlling jack | RS-232 |
| Updating jack | USB2.0 |
| Inputs | 2xHDMI, 1 x Annalog, 1xOptical, 1xBT5.3 (Actions) |
| Output | 1xHDMI |
| Power supply | DC 12V/2A |
|
|
| Satellite 5 speakers: |
|
| Power supply | DC 24V/3A |
| Output power Tweeter | 20W(4Ω), mid-range & woofer: 60W(4Ω) |
| Tweeter | 13 mm alu dome with neodymium magnet |
| Mid-range & woofer | Coaxial 3.5" 4Ω |
| Frequency response | 110Hz-20kHz |
| Sensitivity | 300mV |
| Distortion | ＜0.1%（1W 1KHz) |
| S/N | 90dB (A+weight) |
|
|
| Subwoofer: |
|
| Power supply | AC 100V~240V, 50/60Hz |
| Output power | 600W THD 1% |
| Woofer unit | 10" long stroke, 4Ω |
| Frequency response | 20Hz-110Hz |
| Sensitivity 200mV | 100Hz THD1% |
| Distortion | ＜0.8%（1W 100Hz) |
| S/N | ＞80dB (A+weight) |
